Schüco AD UP door system – entrance doors

Schuco entrance doors

Reliable, robust and energy efficient – thanks to the special construction principle with a high proportion of aluminium, innovative centre gasket concept and two insulation zones, the Schüco AD UP door system combines a high level of stability with excellent thermal insulation. A patented hybrid insulating bar reduces the bimetallic effect. The door system is also impressive in terms of ease of access and burglar resistance. The wide range of design options enables easy-to-use, secure door solutions for all areas of life and work, e.g. with barrier-free thresholds and multifunctional access control systems.

Contact

Schüco AD UP 90

Highly thermally insulated aluminium door system
with a basic depth of 90 mm.

Design features:

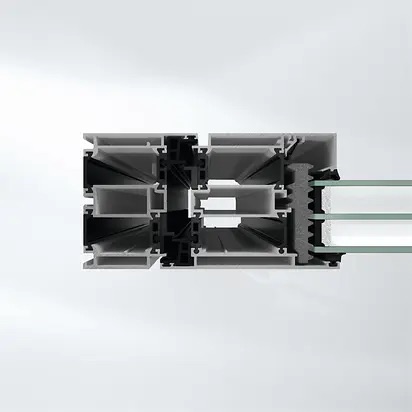

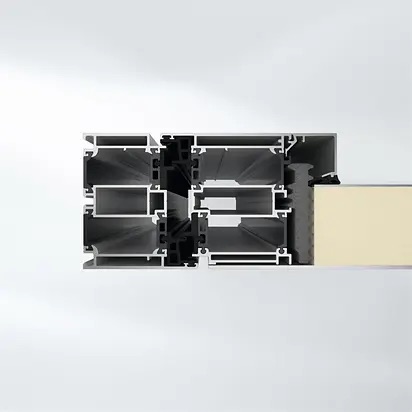

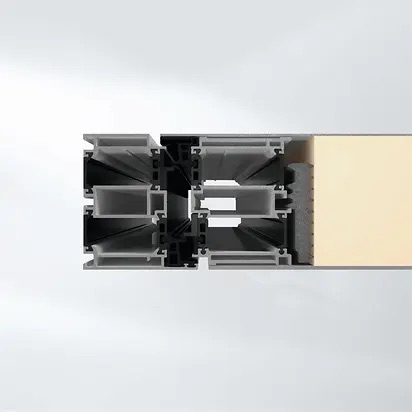

  • Externally flush-fitted door construction with continuous 7 mm shadow gap on the outside.
  • Five-chamber profile construction, arranged symmetrically, consisting of three aluminium shells which are joined by means of special insulating bars without insulating foam.
  • As hybrid insulating bars with a large fixed proportion between the inner and centre shells and a decoupled outer shell, the door leaf profiles must be designed with "split insulating bars".
  • The decoupling must take place between the outer aluminium shell and the insulating bar to reduce the bi-metallic effect.
  • The door leaves must have a four-sided mitred leaf profile.
  • The sealing is carried out by two centre gaskets and two rebate gasket levels.
  • The fittings are installed in the aluminium centre shell, not in the insulating bar.
  • An attachment to building structure is possible in the middle of the profile via the centre shell.
  • If there are no other requirements specified for the sill by standards / guidelines / regional building regulations, the bottom door sill must be fitted with a stabilising, thermally broken aluminium threshold in between and corresponding water-resistant moulded pieces.
Contact

Profile basic depths:

Feature  Value
Outer frame, mullion, transom90 mm
Leaf frame (door)90 mm

Profile face widths:

Feature  Value
Insert outer frame, inward- opening door63 mm
Insert outer frame, outward- opening door37 mm
Outer frame / sill, bottom127 mm
Outer frame, side and top76 mm
Mullion108 mm
Transom108 mm
Leaf frame, outward-opening119 mm
Leaf frame, inward-opening87 mm
Outer frame extension44 mm

Technical specifications for Schuco AD UP system

FeatureValue
Uf value of frame (≥)1.3 W/(m²·K)
Max. height2500 mm
Max. width1250 mm
Max. glass/panel thickness68 mm
Max. vent weight160 kg
Area of applicationResidential projects, Commercial projects
Surface finishesRAL, Anodised
Air permeabilityClass 4
WatertightnessClass 5A
Wind load resistanceClass C2 / B2
Burglar resistanceUp to RC 2
Impact resistanceClass 1
Min.-max. height…2500 mm
Min.-max. width…1250 mm
Min. face width170 mm
Min.-max. glass/panel thickness28…68 mm
Barrier-free (≤) 20 mmYes
Zero-level thresholdYes
Thick door leaf90 mm

Type of design

Single-vent, Double-vent, Single-vent and side section, Double-vent and side section, Single-vent with toplight, Double-vent with toplight, Single-vent with toplight and side section, Double-vent with toplight and side section, Single-vent with side section, right, Single-vent with side section, left, Single-vent with side section, right and left, Single-vent with side section and toplight, Double-vent with side section, right, Double-vent with side section, left, Double-vent with side section, right and left
FeatureSpecification
Vent optionAll around, Sill rail profile, Adjustable sill, Flush-fitted
Infill typeInsert panel infill, Door infill, leaf enclosing on one side, Door infill, leaf-enclosing on two sides
Door thresholdAluminium, PVC-U, Automatic door gasket, Flat door threshold
Fitting materialAluminium, Stainless steel
Concealed fittings systemYes
Neutral-colour fittingYes
Fittings installationSurface-mounted door hinge, Concealed door hinge, Barrel hinge
Electric strikesYes
With panic functionYes
Finger-trap protectionYes
Opening typeSide-hung, Inward and outward, Single and double-vent
DIN directionDIN LH / RH
Door swingFlush-fitted
Mechanical strengthClass 3
Proof of durabilityClass 7, Class 8
Max. sound reduction index Rwp42 dB(A)
Top / bottom door closersYes
Door closer typeTop closers
Certificatescradle2cradle SILVER
CE markingYes
